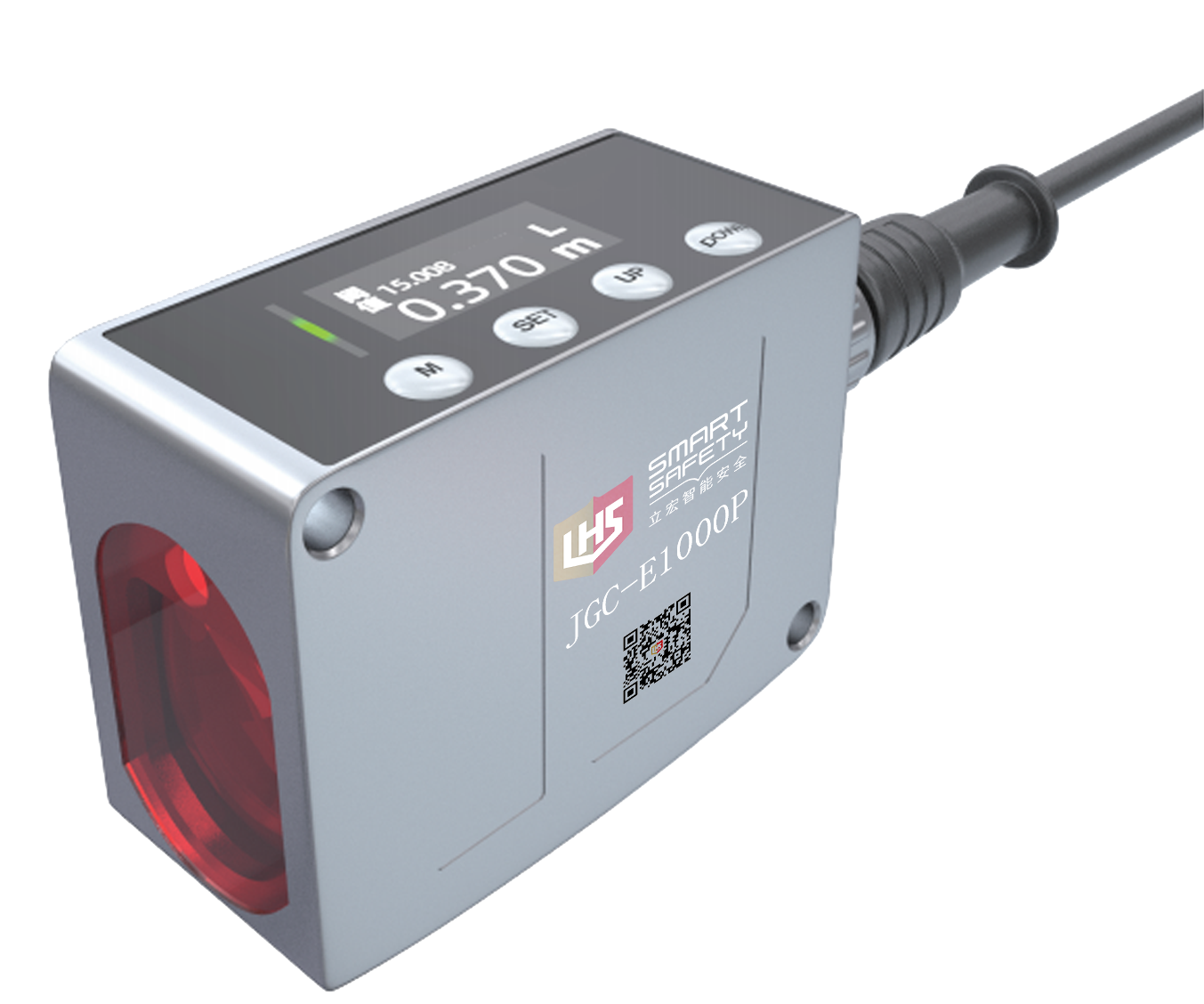

laser distance sensor

·The light source of this product adopts visible semiconductor laser. Laser beams are prohibited from directly or indirectly reflecting from reflective objects into eyes.

Note: Laser beam entering eyes may cause blindness.

·This product is not equipped with explosion-proof structure. It is prohibited to use in flammable, explosive gas or explosive liquid environment.

·Do not disassemble or change this product, because it is not designed to automatically turn off laser emission when the machine body is opened.

·Personal injury, fire or electric shock may be caused if the client dismantles or changes this product privately.

·Using control, adjustment or operation steps other than those specified here may lead to dangerous radiation leakage.

·This product is not suitable for outdoor use.

·Do not use this sensor in an unstable state just after the power is turned on (about 15 minutes warm-up time).

·If switching power regulator must be used, please ground the grounding terminal.

▊	Specification parameter

型號	NPN+模擬量+485	JGC-100NM-495	JGC-200NM-485	JGC-500NM-495
	PNP+模擬量+485	JGC-100PM-485	JGC200PM-485	JGC-500PM-485
	測量距離	0]m-1m	01m-2m出	0.1m-5m
	NPN+模擬量+485	JGC-M1ONM-485	JGC-M20NM-485	JGC-M5ONM-485
	PNP+模擬量+485	JGC-M1OPM-485	JGC-M20PM-485	JGC-MSOPM-485
	測量距離	0.1mn-10m	0.1m-20m	0.1m-50m
分辨率		1mn
測量誤差		±{2mmmm+d萬分之-)
測光類型		紅色半導體激光日類滃光655+10nmn<1miv
電源電壓		12V-24V DC+10% 聯動 P-P10%
消耗電流		≤50mA@24V

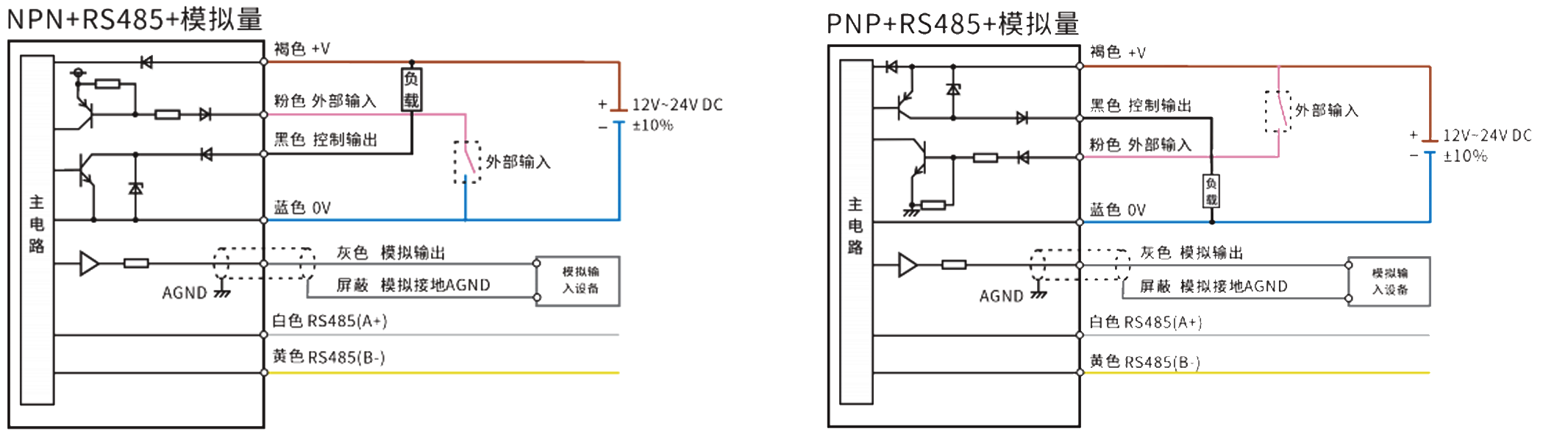

控制輸出		NPN或PNP開滿輸出開漏集電極晶體管輸岀最大電流：50mA 外加電壓:小于30VDC 剩余電壓:小于1.5V 漏電流:小于0.1mA
輸出動作		常開/常閉可以切換
短路保護		自動恢復型
模擬電壓確出		輸出范圍:0-5V(報警時:5.2V) 輸出租抗:100歐
模擬電流出		輸出范圍:4-20mA(報警時:0m) 輸出阻抗:300歐最大
反應時周		50-200m15
外部鏡入		NPN無技點輸入
保護結構		IP65(可做IP67)
工作溫度		-109C-+459℃C(注意不可結露，結冰)
存儲溫度		-20⁰C-160⁰C
工作濕度		353-05%AH
使用環境烈度		白熾燈:受光面照明度3000lK以下
使用標高		2000mn以下
電境		蒂B芯復合電境2mmi
材質		鋁件
質量		約1m-5
Represents the measured distance. In a bad environment, such as too strong sunlight, too large fluctuation of ambient temperature, reflective surface There will be a big error in the measurement of junction black when it is dark. In this case, it is better to add the target reflector.
