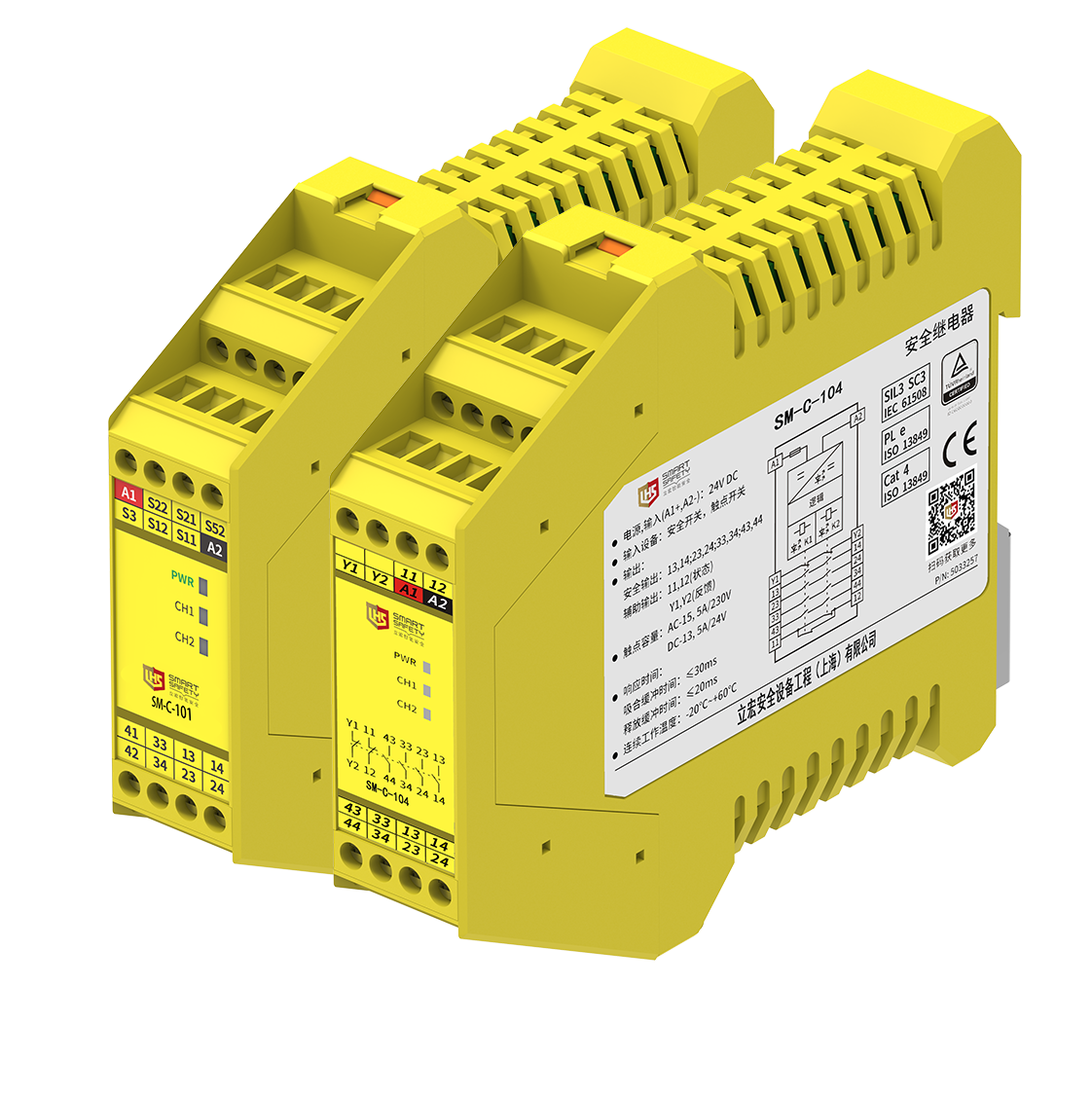

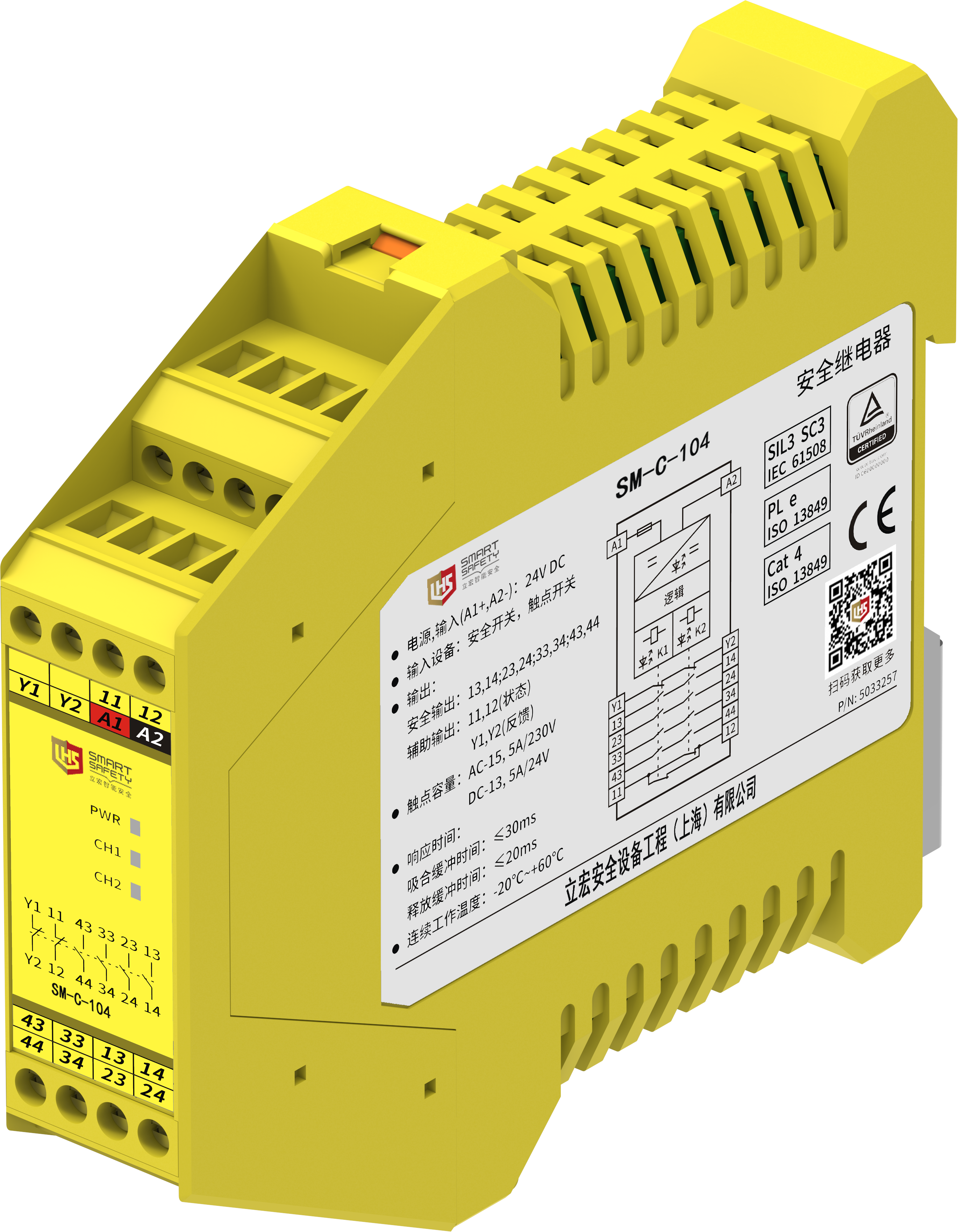

SM-C series safety relay

·Universal shell: 22.5mm universal shell, with strong versatility in appearance and size.

·Three-proof paint coating on the circuit board: protect the circuit board from moisture, insulation, water and dust, and prevent parts from loosening to meet G3 anti-corrosion standards.

·Convenient wiring: the power supply is represented by red and black, the input terminal is represented by S plus number, and the input terminal is represented by number.

·All-localization: All-localization devices are adopted, with high cost performance and worry-free quality.

·Support a variety of equipment input: emergency stop button, safety door, PNP safety light curtain, expansion module.

▊	technical parameter

rated insulation voltage

model	SM-C-101		SM-C-104
Power supply characteristics
supply voltage	24V DC / A		24V DC
Voltage tolerance	0.85 ~ 1.1		/
voltage range	/		20~30V DC
Current loss	≤90mA (24V DC); ≤240mA (24V AC		≤70mA (24V DC)
Input feature
incoming current	≤50mA (24V DC)		≤70mA (24V DC)
conductor resistance	≤15		≤15Ω
input device	Emergency stop button, safety door, PNP safety light curtain		Safety switch, contact switch
Output characteristics
Number of contacts	3NO + 1NC		4NO + 2NC
Contact material	AgSnO2 + 0.2μm Au		AgSnO2 + 0.2 μm Au
Safe output	/		13, 14, 23, 24, 33, 34, 43, 44
Auxiliary output	/		11, 12 (status indication); Y1, Y2 (fault feedback)
Contact type	/		Forced orientation
Output characteristics
Contact fuse protection	10A gL/gG, NEOZED (normally open contact) 6A gL/gG, NEOZED (normally closed contact)		10A gL/gG, NEOZED (normally open contact) 6A gL/gG, NEOZED (normally closed contact)
Electric shock mechanical life	107 Secondary or higher		107 Secondary or higher
Switching capacity (EN60947-5-1)	AC-15, 5A/230V; DC-13, 5A/24V		AC-15, 5A/230V; DC-13, 5A/24V
Time characteristics
Suction buffer time	≤300ms	≤30ms
Release buffer time	≤30ms	≤20ms
recovery time	≤100ms	≤100ms
Short-term interruption of power supply	20ms	20ms
Environmental characteristics
electromagnetic compatibility	EN 60947, EN 61000-6-2, EN 61000-6-4
frequency of oscillation	10Hz~55Hz
Vibration amplitude	0.35mm
usage temperature	-20℃~+60℃
storage temperature	-40℃~+85℃
relative humidity	10%~90%
altitude	≤2000m
Insulation characteristics
Overvoltage grade	Ⅲ
class of pollution	2
250V AC
Rated impulse voltage	6000V (1.2/50us)		6000V (1.2/50us)
Rated impulse voltage	1500V AC, 1min
Electrical clearance and creepage distance	accord with EN 60947-1
認(rèn)證
safety integrity level	SIL3
Performance grade	PLe
Security category	Cat.4
